Little half fatbike - mark I

Necessity is the mother of invention. Without inventors and their out of the square ideas for problems, we probably wouldn't have realised we can use a rock to open a nut. Look at bottle cages for example, imagine a world without them - you'd be stuffing your jersey pockets with bottles and looking like a team domestique. Or zip ties, where would we be without zip ties, thank you Thomas and Betts.

 I have a 1 hour ride to and from work each day, this gives me a bit of time to ponder ideas and create stuff. Cogito ergo sum. Great ideas, stupid ideas and off key singing are the specialties on the commute, though on one fine day I pondered the issue of how to carry our pet monkey on our next adventure. I don't recall what I was singing though.

Our pet monkey is getting bigger, she's grown from the Weeride, to the LOCT, as well as a Weehoo iGo recumbent tagalong. We've had a halfwheeler tagalong bike in the shed for a couple of years, used it a few times, but the experience for the monkey was always ho-hum compared to riding up front with daddy. We've toured a fair bit with her on the front of the tandem in her Weeride, lost count of the full daytrips on and offroad with her on the Baby AC bike, so she's familiar with big days in the saddle with daddy.

With an upcoming trip we need more storage for 3, and the soft sands to cover will be better ridden with an additional tyre. The brief was I needed to carry the monkey, a handlebar bag, pannier rack for the Ortleibs and a top bag. Too easy.

Lets start with the basic chassis, standard Giant Halfwheeler tagalong.

These normally come with a 20" wheel, I researched the possiblity of changing to a trials wheel and tyre combo to get more width, but with this I wouldn't achieve a longer footprint which is what you really need in sand.

With sand, you are constantly climbing a 'wave' of sand that rolls in front of the tyre, the longer and narrower the footprint, the better float and less resistance of the 'wave'. Widen the tread and the 'wave' you are pushing gets wider too, adding resistance. Buuuut, the increased surface area may provide additional float - depends on the weight on the tyre. Tyre pressures, sand temperature, grain size and moisture content come into play too.

So I needed to increase the tyre width as well as the length of the footprint, so the only way to do that was upsize the wheel. Several things needed to happen, the wheelbase of the taglong needed to grow, and I need to source a fatter wheel combo. Well, duh.

Velocity make a 44mm wide rim called the Snowcat, I bought the last new one they had - it was a front - a quick dig in my parts box netted me the 32H Shimano rear hub.

Swapped over the hub using the same spokes, hub flanges identical, spoke length perfect as you can see from the pic - nipple threads fully engaged with spoke head.

Any high points need to be cleaned up with the Dremel. Thank you, Albert J. Dremel.

Velocity had no rim strips, so made up a rim strip from the clear polyester adhesive tape I use as frame protection. 100mm wide, fold in half, trim and apply.

Tyre of choice was a Maxxis Hookworm 2.5. These tyres are awesome, had them on the Baby AC (the original monkey carrying bike) for many years with excellent ride and wear characteristics. Look phat and perform well in sand.

To fit this into the Halfwheeler frame, I used a chainstay assembly I've had kicking around in the spares dept for years. Bought on ebay for a couple of bucks, it's the chainstay for a Giant AC. I researched a few other options - Xtracycle classic (didn't have the tyre clearance and unable to integrate into a 20" rear triangle) and even a Puglsey fork (no derailleur hanger, odd angle for axle entry and unsure of strength of fork blade)

I wrapped it and the Halfwheeler seatstays with some old tubes to protect, isolate and to provide a firm and grippy interface.

Mock up of the wheel in place with some rack mounting brackets, allowed me to dial in the position of the wheel for clearance and correct alignment.

Install the AC chainstay. Mounting it below the Halfwheeler chainstays would have been more ideal, but the dropouts and derailleur hanger didn't allow for an optimum fit, plus chain rub on the chainstay (I wasn't going to cut or mutilate the Halfwheeler at this point). Mounting above the seatstays gives me a good chainline, tyre clearance, solid mounting and raises the axle centre about 30mm.

Alloy angle offcuts provide more surface area and using screwband hose clamps for a firm, reliable and adjustable bond. Thank you Lumley Robinson.

* After this pic was taken, 4 more hose clamps were added to provide redundancy.

Drivetrain bits - I'm a zealous recycler/repurposer, so comes as no surprise I have this stuff lying around. The Halfwheeler runs a 7spd twisty, I'm going to run a top normal rear mech to make it easier for the pet monkey to shift. As with the other sand bikes, I'll be running the super dry Ride Mechanic Bike Milk chain lube. Thank you, Owen and Cheryl.

The AC chainstay assembly had bolt mounts for the seatstay suspension pivots (the Giant AC was a 6" dually) and would make excellent mounts for the rack, but needed to step them down to suit an M5 mounting bolt. A mounting nut for road front brakes was the perfect diameter, a quick job with the hacksaw docked them to length.

The nuts were steel, so liberal amounts of grease packed in during assembly. Rack lower legs mounted, stainless hardware.

 The upper rack mounts had a similar serendipitous outcome, there was a breather hole for the stay bridge, perfect diameter to tap an M6 thread.

Added a small extension bracket to get the rack sitting level. The drive side of the stay was angled to allow clearance for the crankset, a few CPS washers (Avid techy name for the concave/convex washers used under their brake calipers) corrected the angle and allowed firm tension on the bolt and extension bracket.

Rack of choice was another Topeak Super Tourist DX, have these on quite a few bikes. Separate bar for pannier bags, as well as the MTX slide for top bag attachment. Will be using the Ortleib bikepackers for this trip and a dry MTX top bag instead of the drybag pictured. Big squishy saddle (with springs too) just not enough room yet for a suspension seatpost.

The Halfwheeler came with a cutesy fender. Inadequate. The pet monkey was directly in the line of fire from whatever the back wheel throws up, so the fender needed to be mega-upsized.

Back when I worked in industrial automation, we had these sample signs from a supplier. I had a few lying about in the workshop storeroom, perfect size and made from 2mm polyethylene. Printed one side, white the other.

A quick measure up, drill a few mounting holes and routed out two slots with the other Dremel for the velcro strap. Thanks again, Al.

Only issue I had with the material was that it was very white, and would reflect a lot of glare into the monkeys eyes. I had this self adhesive window tinting mesh in my workshop store, perfect.

Dude, is that carbon?

Because of the frame pivot to allow folding, a quick velcro attachment was necessary, the plastic is pretty flexible and will roll well when folding the frame to put in the truck.

Handlebar bag for monkey chow, rainjacket, flowers and shells she collects by the shea shore.

Boat leaves on saturday morning. We had a quick test ride down the street to the big sandpit in the park, I quizzed her to see if she liked the bike "I love it, thank you daddy" she replied whilst enthusiastically nodding her head.

I felt like an inventor.

Wednesday, 16 May 2012

Wifey's getting fat - part 2

"Honey, geez you've got a great rack" I said to wifey in the backyard.

" Have I?" she replied confidently.

"Yep, a great set. Good capacity, easy to mount too" I added innocently.

"Hmm, that's great." said she, dubious of the double entendre possiblity.

"Although, one's a bit bigger than the other and they sit at different heights."

"REALLY" was her firm response.

We all know the look. That look. But I was brave and soldiered on, my intention pure. Fact is, she needed to be told. She thought... but then I was talking about... anyways lets move forward.

For our upcoming trip, the Pug needed some racks. Seeing as the frame is small, the tyre is big and wifey has widdle wegs, there is no way a Viscacha/Pika seatpack from Revelate was going to fit. In the parts room I had a Topeak seatpost rack, and my old Minoura rack. Perfect. I prefer rackless touring, but we have some bulky gear that will just sit better on a rack or in a pannier bag.

I have fond memories of this rack, bitd I had this mounted on the front of my mint '88 GT Karakoram, I'd finish work and on the way home I'd pick up wifey - literally - she'd sit on the rack and try not to ladder her stockings.

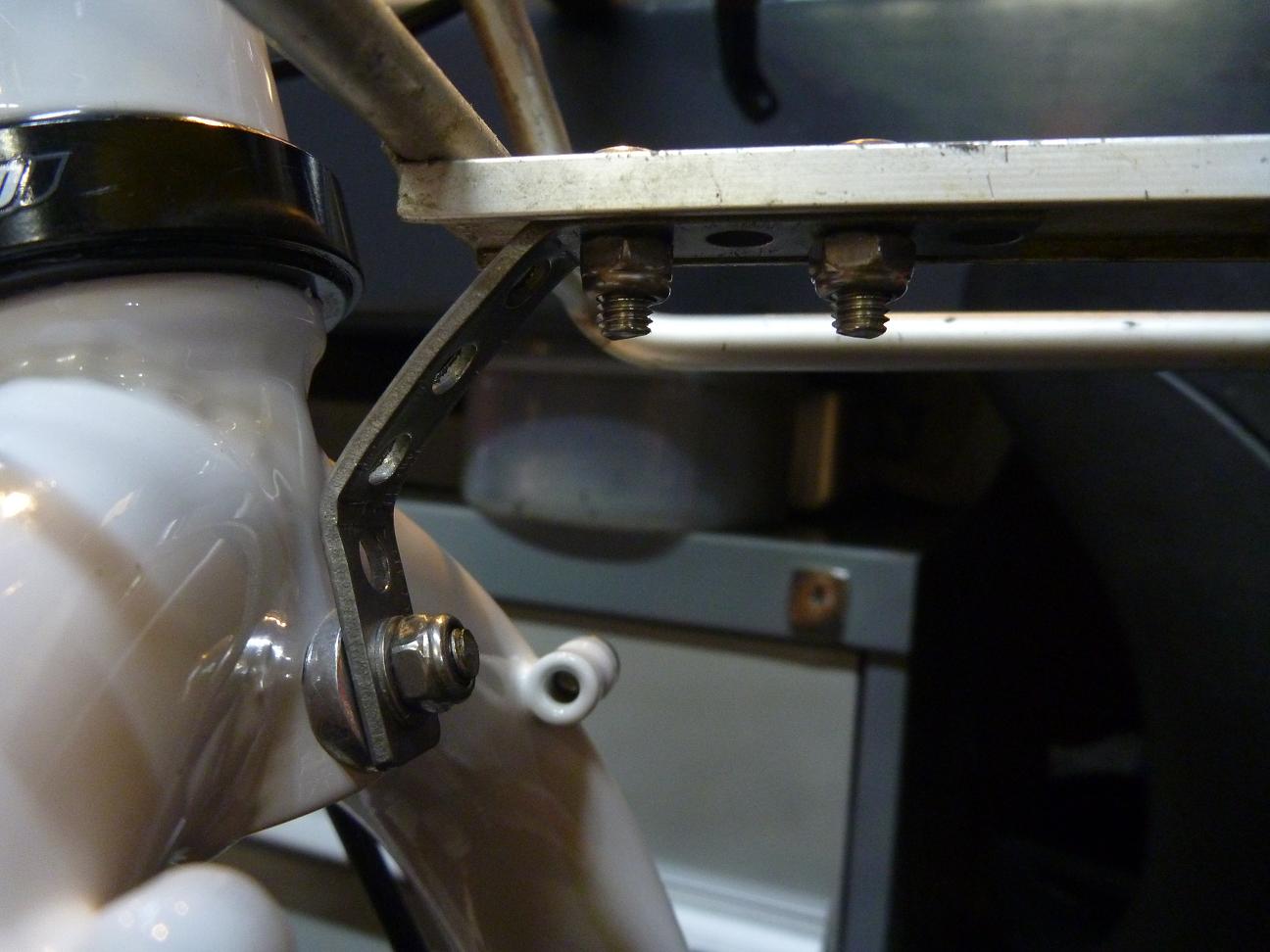

I don't quite have the spoon bending power of Uri Geller, so I shaped the bracket with what are undoubtedly the 2 most versatile tools in the universe - the vice and the hammer.

10L drybag and my old Axiom bags. Ample space for the wetsuits, flippers, goggles etc.

Out back is the Topeak  rack and the trusty MTX expandable bag. This is the 5 bedroom bag, with flip out panniers and expandable top. Veteran of a few tandem tours, commutes and several years as the pet monkeys' bag for daycare.

Saturday, 5 May 2012

I'm getting fat - part 1

"Honey, you're getting fat" wifey said to me at the dinner table.
Now, saying this would normally land you in front of the mirror, flexing your pecs, abs and biceps, then walking away confidently saying to yourself "Yeah, I still got it".

But she had good reason for saying it - in fact she relished in it.
"Am I really?" I replied excitedly.
My waistline was not increasing in girth, no middle age spread, no man boobs, no implants or body augmentation surgery, alas it was far more exciting than that.
It was time for a new bike to join the family. Not just any bike, it was a fat bike.
The bike arrived in a really, really big bike box. The tyres are 5" wide. I'm more of a function over form kinda guy, but as I was building it, it was triggering synapses in my brain that get excited when I see tactical response vehicles, APCs, podium baja/desert trucks and rockcrawlers.

To quote Tim Allen from Home Improvement " You never really own something, until you've built it with your own hands" argh argh, it was time for me to don the apron and get building.

I built the bike, then road tested it for fit by commuting to work a few times and doing a river loop ride with the shop bunch. Turned a lot of roadie heads, and was great to have it on display in the shop as a talking point for customers.

We've got quite a few trips planned, many of them on the beach and in harsh environments, and being a steel frame and fork it needed to be treated where the paint don't go - inside the tubes. I've rustproofed plenty of my 4wds for beach work, so to keep the duco pretty and the frame rust free internally it was time to do the same. Tear down bike to bare frame.

Process and product the same, coat all exposed steel surfaces with cavity wax, I've used fish oil with success too, but takes a long time to cure and weeps forever.

Frame tubes have holes either internally or externally, they allow water, air and contaminants into the frame and that's where the rust process begins. I cover one of the holes on each tube with tape, then flood the tube with cavity wax from the other end, slosh it around, drain the excess and let it cure. It's a long process but essential. I let the wax flash off for a week or so, then cover all external holes with white electrical tape to keep contaminants out.

Also the exterior gets a few touch ups, the underside of the cable lugs gets very little paint from the factory, so a good idea to go over these areas with a few coats.

When I build a bike there are a lot of little touches to ensure longevity and reliability. A few of these needed to be carried out given the type of bike and the terrain to be covered. First off was adding a drain hole to the BB shell, tapping it M5 and adding a drain bolt.

The BB shell faces weren't parallel or clean, so a face and chase was next.

The spoke tensions weren't up to spec, a quick email to Bob at Surly confirmed 1200N/120kg for standard/drive and 1100N/110kg for offset side. Clown Shoe only just fitted in the Park truing stand with mm to spare.

Lots of lube. I like heavy oil on CPS hardware, assists with alignment and helps prevent corrosion freezing them in place.

Grease it, torque it, tune it. Replaced the phosphor black bolts on the cranks and stem with shiny stainless steel units.

Built up again, with a Revelate framebag (borrowed from the Fargo until my next order), Viscacha seatpack with Spocket, and Gastank bag. Applied some tough polyester tape under the framebag straps.
